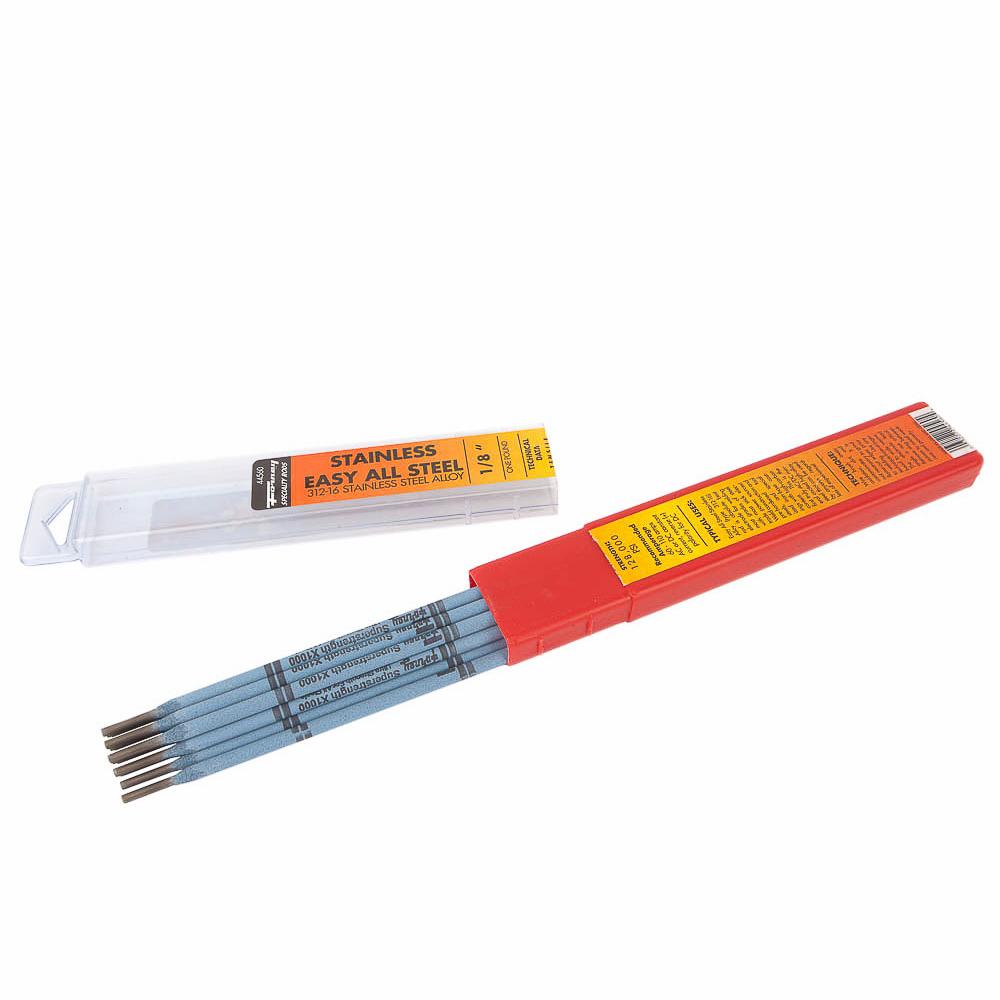

E 312-16, 1/8" x 1 lb., Stainless Steel Electrode
Specialty welding electrodes recommended for repairing worn parts and as an underlay for hardfacing. Ideal for repairing tools, dies, spring steel, and any dissimilar metal combinations (not recommended for aluminum and copper alloys). Chemistry offers excellent crack resistance.
Item #: 44560
UPC #: 032277445604
E 312-16 stainless alloy "easy all steel" specialty welding electrodes are the ultimate rods for most grades of steel using any stick electrode power source. Can be used by anyone, regardless of prior welding experience. Features a superior combination of tensile strength and elongation. The arc is so ionized that you can not short it out. Typical applications include joining abrasions and heat and corrosion resistant steels. Best suited to horizontal fillet welds.
PRODUCT SPECIFICATIONS
- Hardness: Brinell 225
- Recommended Polarity: DC Reverse (Electrode +) or AC
- Diameter: 1/8"
- Length: 14"
- Weight Lbs. (Kg): 1 (.453)
- Tensile Strength: 128,000 PSI (880 MPa)
- Yield Strength: 90,000 PSI (630 MPa)
- Amperage: 60-110
WELDING POSITIONS
- Flat, horizontal, vertical up and overhead
WELDING TECHNIQUES
- A 90° vee joint should be used when joining heavy sections. Maintain a short arc length and use stringer beads.
